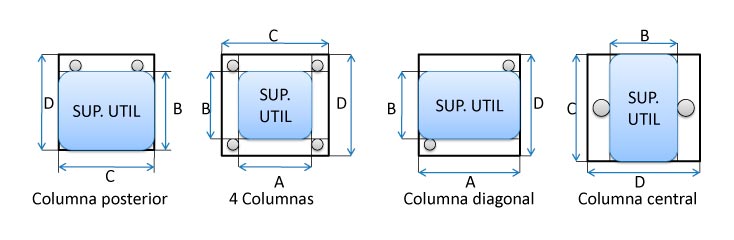

Modelo
CxD
E1 E2 D L C/Posterior
B
4/Columnas
BxA
C/Diagonal
B
C/Central
B
150x150 Liv. 24 24 20 100/220 108 66x66 66 66
150x150 Pes. 30 30 25 100/240 97 44x44 44 44
175x175 Liv. 24 24 20 100/220 133 91x91 91 91
175x175 Pes. 30 30 25 100/240 122 69x69 69 69
200x200 Liv. 30 30 25 100/240 147 94x94 94 94
200x200 Pes. 37 37 30 110/240 137 74x74 74 74
250x250 Liv. 30 30 25 100/240 197 144x144 144 144
250x250 Pes. 37 37 30 110/240 187 124x124 124 124
300x300 Liv. 37 37 30 110/240 237 174x174 174 174
300x300 Pes. 48 48 40 140/300 222 144x144 144 144
400x400 Liv. 37 37 30 110/210 337 274x274 274 274
400x400 Pes. 48 48 40 140/300 322 244x244 244 244

Portamatrices
Acero S.A.E. 1045

Columnas y Bujes
Acero S.A.E. 8620 Cr.NI.C.
Tratamiento Térmico cementado, templado y revenido
Dureza Hrc. 60±2

Similares
